SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

Name: SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
Brand: SINOMEMB
Price: 3 USD

Buy cheap SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane product

Brand Name : SINOMEMB

Model Number : SNSW-4021

Certification : NSF

Place of Origin : China

MOQ : 1

Price : CN¥3,637.70/pieces >=1 pieces

Supply Ability : 1500000 Piece/Pieces per Month

Packaging Details : Standard export packaging

core components : RO Sheet

warranty : 1 Year

productivity : 500GPD

weight (kg) : 2.5 kg

Product name : Seawater desalination reverse osmosis membrane

Application : Water Purification

Usage : desalination

Salt rejection % : 99.4

Working pressare psi : 800Mpa

Size : 580*120*120

Contact Now

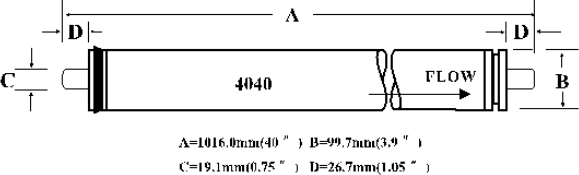

Product Paramenters

Model	A/mm(inch)	B/mm(inch)	C/mm(inch)	D/mm(inch)	E/mm(inch)
4021	533.4(21)	101.6(4.0)	19.1(0.75)	26.7(1.05)	480(18.9)

Model	A/mm(inch)	B/mm(inch)	C/mm(inch)
8040	1016(40)	203.2(8.0)	29.1(1.15)

Model	SW-4021
Effective membrane area ft²(m²)	33(3.1)
Average yield GPD(m3/d)	750(2.8)
Salt rejection(%)	99.5
Recovery rate(%)	4
Operating pressure psi(Mpa)	800(5.5)
Max.operating pressure psi(Mpa)	1200(8.2)
Max.inflow temperature(℃)	45
Max.inflow SDI	5
Free chlorine concentration	<0.1
Continuous running water pH range	3-10
Chemical cleaning water pH range	2-11
Max.single membrane element pressure drop psi(Mpa)	15(0.1)

Details Images

8.3Test condition

Test pressure.................................................................................800psi (5.5Mpa)

Test liquid temperature..................................................................25℃

ppm................................................................................................32000ppm(NaCl),5ppm(Boron)

Test liquid PH value.......................................................................8

Recovery rate of single memb...............................2%(2514),8%(2540,4040,8040),4%(2521,4021)

8.4 Absolute Maximum Ratings

Max operating pressure of 8 inches and 4 inches......................1200psi(8.3Mpa)

Max operating pressure of 2.5-inch and other models..............1000psi(6.9Mpa)

Max feed flow of 8 inch memb...............................................75gpm(17 m³/h)

Maximum feed flow of 4 inches.............................................16gpm(3.6 m³/h)

Maximum feed flow of 2.5 inches..........................................6gpm(1.4 m³/h)

Max feed temperature.................................................................45℃

Max feed continuous operation temperature When PH > 10......35℃

Max feed SDI15..........................................................................5

Influent free chlorine concentration........................................＜0.1ppm

PH range of feed water during continuous operation.................2～11

PH range of inflow during chemical cleaning(30 Min)........1～13

Max pressure drop of single memb............................15psi(0.1Mpa) (2540,2514,4021,4040,2521,8040)

............................................13psi(0.09Mpa) (8040HF)
